本文共 10525 字，大约阅读时间需要 35 分钟。

using System;using System.Collections.Generic;using System.Linq;using System.Threading.Tasks;using Microsoft.AspNetCore.Builder;using Microsoft.AspNetCore.Hosting;using Microsoft.AspNetCore.Http;using Microsoft.AspNetCore.HttpsPolicy;using Microsoft.AspNetCore.Mvc;using Microsoft.Extensions.Configuration;using Microsoft.Extensions.DependencyInjection;using SignalR.Draw.Core.SignalR;namespace SignalR.Draw.Core{    public class Startup    {        public Startup(IConfiguration configuration)        {            Configuration = configuration;        }        public IConfiguration Configuration { get; }        // This method gets called by the runtime. Use this method to add services to the container.        public void ConfigureServices(IServiceCollection services)        {            services.Configure<CookiePolicyOptions>(options =>            {                // This lambda determines whether user consent for non-essential cookies is needed for a given request.                options.CheckConsentNeeded = context => true;                options.MinimumSameSitePolicy = SameSiteMode.None;            });            //添加SignalR            services.AddSignalR();            services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Version_2_2);        }        // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.        public void Configure(IApplicationBuilder app, IHostingEnvironment env)        {            if (env.IsDevelopment())            {                app.UseDeveloperExceptionPage();            }            else            {                app.UseExceptionHandler("/Home/Error");                // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.                app.UseHsts();            }            app.UseHttpsRedirection();            app.UseStaticFiles();            app.UseCookiePolicy();            //添加SignalR            app.UseSignalR(routes =>            {                routes.MapHub<ChatHub>("/chatHub");            });            app.UseMvc(routes =>            {                routes.MapRoute(                    name: "default",                    template: "{controller=Home}/{action=Index}/{id?}");            });        }    }}

using Microsoft.AspNetCore.SignalR;using System;using System.Collections.Generic;using System.Linq;using System.Threading.Tasks;namespace SignalR.Draw.Core.SignalR{    public class ChatHub : Hub<IHubClient>    {        private const string BROADCAST = "broadcast";        /// <summary>        /// client调用发送        /// </summary>        /// <param name="roomName"></param>        /// <param name="userName"></param>        /// <param name="content"></param>        /// <returns></returns>        public async Task Send(string roomName, string userName, string content)        {            await SendToClient(roomName, userName, content);        }        /// <summary>        /// 连接成功        /// </summary>        /// <returns></returns>        public override Task OnConnectedAsync()        {            var connectionId = Context.ConnectionId;            return base.OnConnectedAsync();        }        /// <summary>        /// 失去连接        /// </summary>        /// <param name="exception"></param>        /// <returns></returns>        public override Task OnDisconnectedAsync(Exception exception)        {            //todo            return base.OnDisconnectedAsync(exception);        }        /// <summary>        /// 进入房间        /// </summary>        /// <param name="roomName"></param>        /// <param name="userName"></param>        /// <param name="content"></param>        /// <returns></returns>        public async Task InRoom(string roomName, string userName, string content)        {            var connectionId = Context.ConnectionId;            await Groups.AddToGroupAsync(connectionId, roomName);            await SendToClient(roomName, userName, content);        }        /// <summary>        /// 离开房间        /// </summary>        /// <param name="roomName"></param>        /// <param name="userName"></param>        /// <param name="content"></param>        /// <returns></returns>        public async Task OutRoom(string roomName, string userName, string content)        {            var connectionId = Context.ConnectionId;            await SendToClient(roomName, userName, content);            await Groups.RemoveFromGroupAsync(connectionId, roomName);        }        /// <summary>        /// 发送到Client        /// </summary>        /// <param name="roomName"></param>        /// <param name="userName"></param>        /// <param name="content"></param>        /// <returns></returns>        private async Task SendToClient(string roomName, string userName, string content)        {            if (roomName == BROADCAST)//广播            {                await Clients.All.ReceiveAsync(new Message { UserName = userName, RoomName = string.Empty, Content = content });            }            else            {                await Clients.Groups<IHubClient>(roomName).ReceiveAsync(new Message { UserName = userName, RoomName = roomName, Content = content });            }        }    }}

using System;using System.Collections.Generic;using System.Linq;using System.Threading.Tasks;namespace SignalR.Draw.Core.SignalR{    public interface IHubClient    {        /// <summary>        /// 发送消息到客户端        /// </summary>        /// <param name="message"></param>        /// <returns></returns>        Task ReceiveAsync(Message message);    }}

using System;using System.Collections.Generic;using System.Linq;using System.Threading.Tasks;namespace SignalR.Draw.Core.SignalR{    public class Message    {        /// <summary>        /// 房间名        /// 注意：广播=""        /// </summary>        public string RoomName { get; set; }        /// <summary>        /// 用户名        /// </summary>        public string UserName { get; set; }        /// <summary>        /// 内容        /// </summary>        public string Content { get; set; }    }}

@{    ViewData["Title"] = "Home Page";}<style type="text/css">    .house {        margin: 0;        padding: 0;    }        .house .room {            margin: 50px 10px;            padding: 0;            list-style-type: none;            width: 200px;            height: 200px;            float: left;        }            .house .room .board {                margin: 0;                padding: 0 0 0 10px;                border: 1px solid black;                width: 200px;                height: 200px;                text-align: left;                overflow: auto;            }            .house .room .name {                width: 200px;                height: 200px;            }            .house .room .input {                width: 200px;                height: 50px;            }                .house .room .input input {                    width: 100%;                }</style><script src="~/lib/signalr/signalr.js"></script><script type="text/javascript">    var connection = new signalR.HubConnectionBuilder().withUrl("/chatHub").build();    connection.on("ReceiveAsync", function (message) {        console.log(message);        receive(message.roomName, message.userName, message.content);    });    connection.start().catch(function (err) {        return console.error(err.toString());    }).then(function () {        inRoom("broadcast", myName, "加入房间");    });</script><script type="text/javascript">    var myName = prompt("enter your name", "man");    $(function () {        $("#txtMyName").html(myName);        $("[name=content]").keydown(function (event) {            //send            if (event.keyCode == "13") {                var content = $(this).val();                var roomName = $(this).parent().parent().attr("name");                send(roomName, myName, content);                $(this).val("");            }        });        $("[name=in]").click(function () {            var roomName = $(this).parent().parent().attr("name");            inRoom(roomName, myName, "加入房间");            $(this).prop("disabled", "disabled");            $(this).siblings("button").prop("disabled","");        });        $("[name=out]").click(function () {            var roomName = $(this).parent().parent().attr("name");            outRoom(roomName, myName, "离开房间");            $(this).prop("disabled", "disabled");            $(this).siblings("button").prop("disabled", "");        });    })    //send data    function send(room, userName, content) {        connection.invoke("Send", room, userName, content).catch(function (err) {            return console.error(err.toString());        });    }    //receive data    function receive(room, userName, content) {        renderContent(room, userName, content);    }    //out room    function outRoom(room, userName, content) {        connection.invoke("OutRoom", room, userName, content).catch(function (err) {            return console.error(err.toString());        });    }    //in room    function inRoom(room, userName, content) {        connection.invoke("InRoom", room, userName, content).catch(function (err) {            return console.error(err.toString());        });    }    //render data    function renderContent(room, userName, content) {        console.log(content);        if (room == "") room = "broadcast";        if (room == "broadcast" && content != "离开房间" && content != "加入房间") {            $("[name=" + room + "] .board").append("<div>" + userName + " :" + content + "</div>")        }        else {            $("[name=" + room + "] .board").append("<div>" + userName + " :" + content + "</div>")        }    }</script><div class="text-center">    <ul class="house">        <li class="room" name="broadcast">            <div class="board">            </div>            <div class="input">                <input  name="content" placeholder="say:" />            </div>            <div class="name">                广播            </div>        </li>    </ul>    <div style="clear:both"></div>    <ul class="house">        @for (int i = 1; i < 10; i++)        {            <li class="room" name="room@(i)">                <div class="board">                </div>                <div class="input">                    <input name="content" placeholder="say:" />                </div>                <div class="name">                    房间@(i)<button name="in">加入</button><button name="out" disabled>离开</button>                </div>            </li>        }    </ul></div>

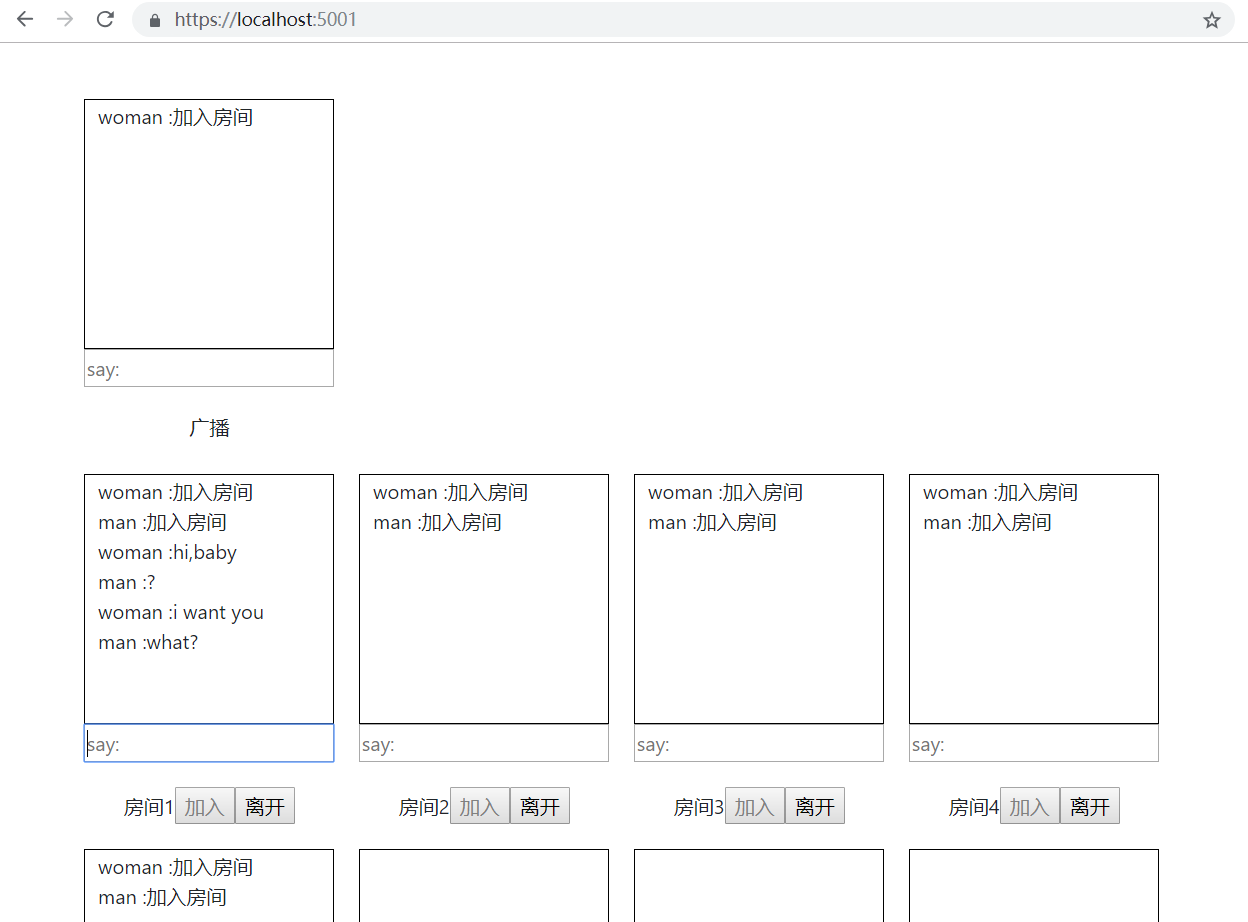

最终运行效果：

git开源地址：
